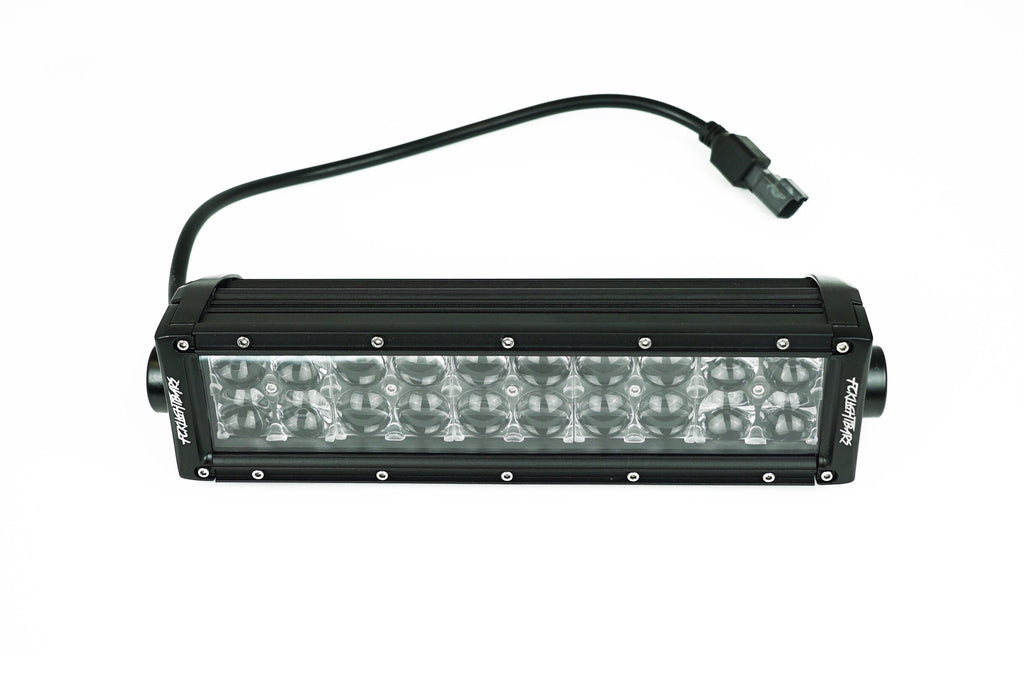

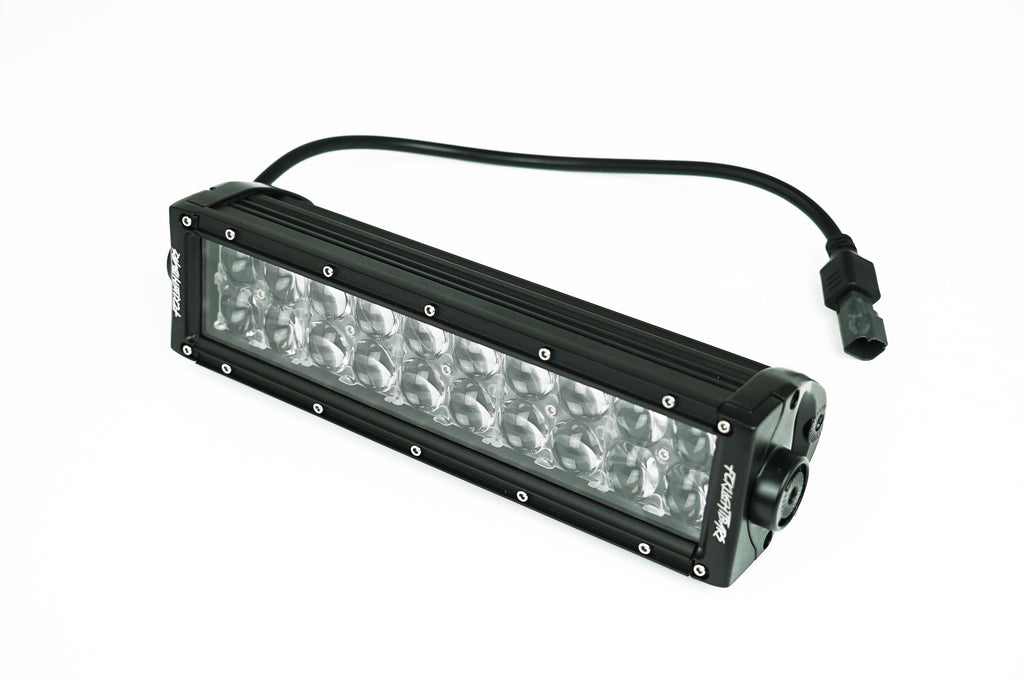

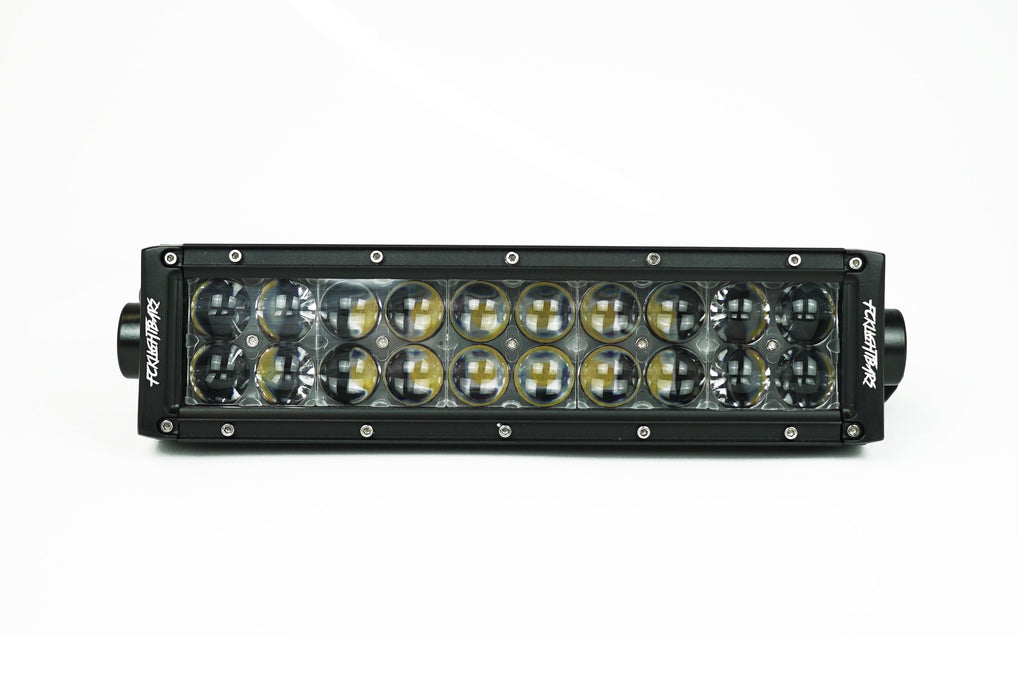

FCK Lightbars 4D-Optic Series LED Light Bar – Dual Row OSRAM (10"–55")

The FCK Lightbars 4D-Optic Series LED Light Bar – Dual Row OSRAM (10"–55") is a genuine FCK Lightbars product (LED Light Bars).

Key Features

• The 4D-Optic Series is the latest in LED technology and the brightest light bar in its class. OSRAM 5W LED chips fire through our 4D optic reflector-and-lens system for remarkable lumen output and projection that turns night into day — up to 55,000 lumens on the 55-inch bar.
• Sized And Shaped To Your Build: Seven lengths from 10 to 55 inches, in straight or curved housings, with spot, flood, or combo beam patterns — choose all three at checkout. Whether it's a bumper bar on a daily or a roof bar on a chase truck, there's a 4D-Optic that fits.
• Output By Size: 10" — 60W / 6,600 lumens
• Output By Size: 15" — 120W / 13,200 lumens
• Output By Size: 20" — 200W / 22,000 lumens
• Output By Size: 30" — 300W / 33,000 lumens
• Output By Size: 40" — 400W / 44,000 lumens
• Output By Size: 50" — 480W / 54,800 lumens
• Output By Size: 55" — 500W / 55,000 lumens
• What Does The 4D Optic Actually Do?: It focuses each LED's output through a projector-style lens instead of letting it scatter, so more of the light lands down range. Same watts, visibly more distance.
• Straight Or Curved?: Curved bars follow the lines of a roof mount and spread the beam slightly wider at the edges; straight bars are the classic pick for bumpers and grilles.
• Want This Platform With Color?: The RGB V-2 Series is built on the same 4D-Optic platform with a full multi-color halo added — zero performance loss.

Specifications

• LEDs: OSRAM 5W chips
• Optics: 4D reflector with 4D lens
• Color temperature: 6000K
• Operating voltage: 10–30V DC

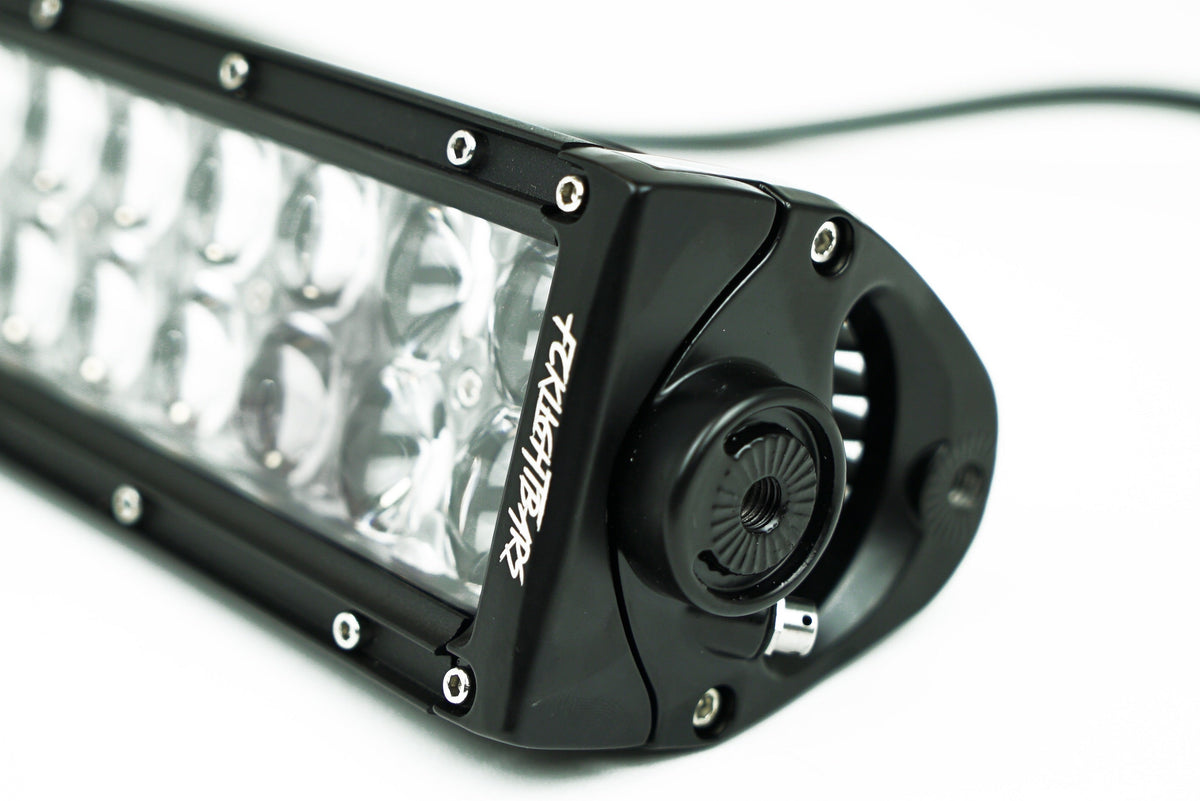

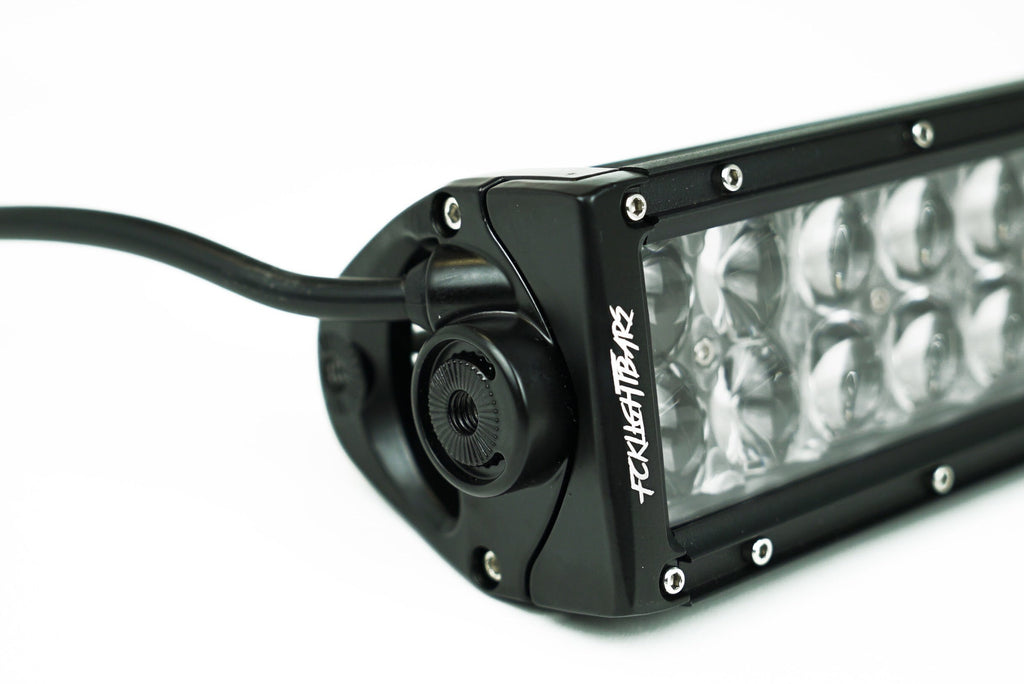

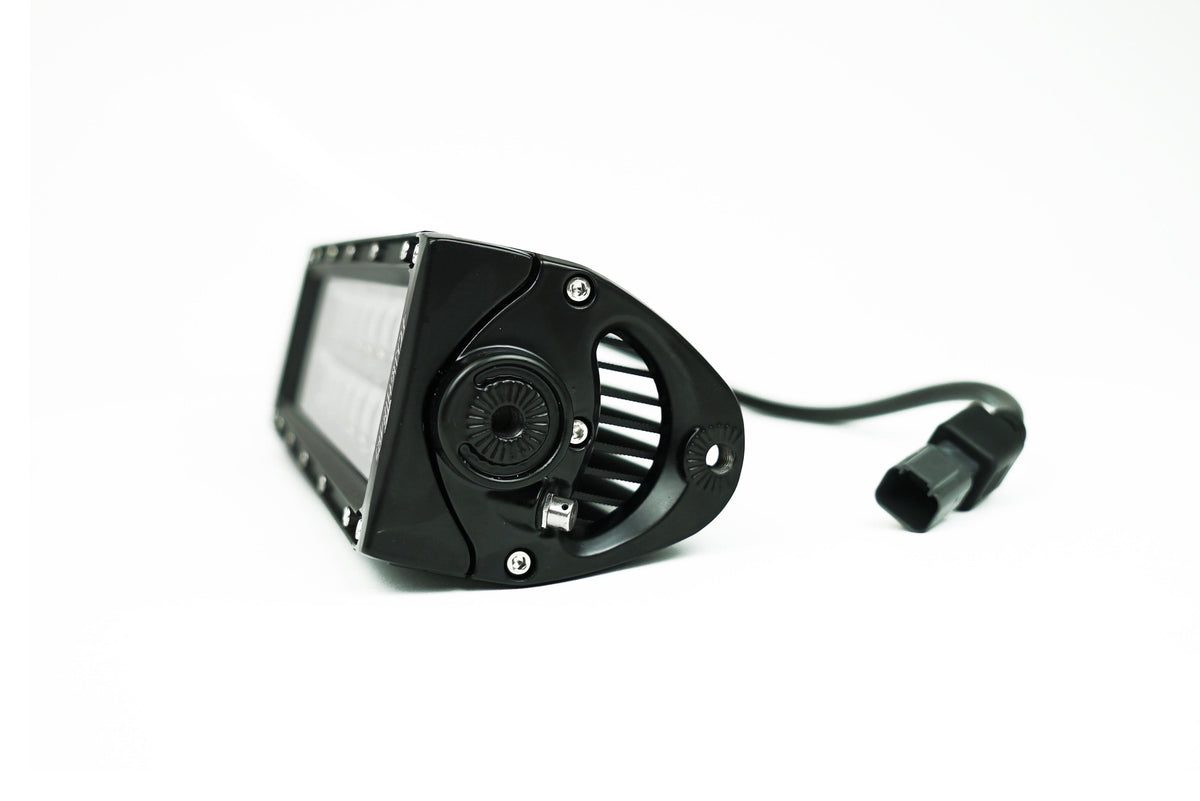

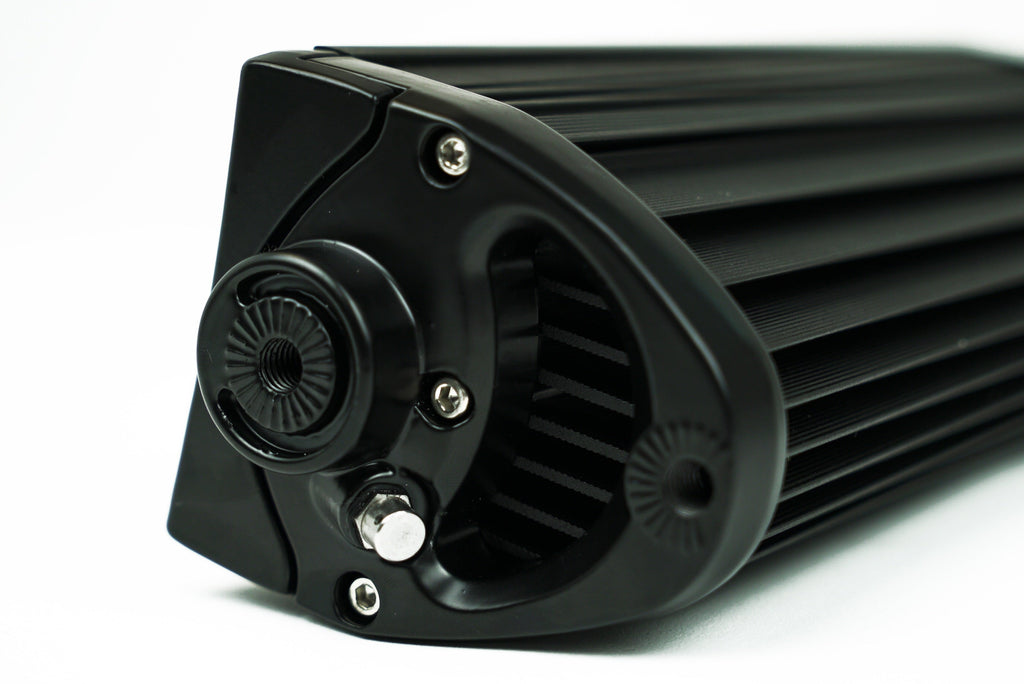

• Housing: black die-cast aluminum, straight or curved
• Lens: PMMA polycarbonate
• Waterproof rating: IP68

Package Includes

• 1x 4D-Optic Series light bar (size/beam/shape per your selection)
• Mounting brackets and hardware
• Wiring harness is not included. Add a plug-and-play harness for a relay, fuse, and switch ready to go.

Vehicle Fitment

The manufacturer does not publish a vehicle-specific fitment list for this item. Please confirm the size or mounting fits your vehicle before ordering.

Warranty

• Lifetime warranty — LED failure, defects, condensation/moisture

Shipping

• Processing time: typically 7-14 business days (orders placed after 5 PM PST, on weekends or on holidays begin processing the next business day).
• Ships via UPS or USPS.
• Tracking is provided once the order ships.
• Shipping weight: 2.00 lb (907 g).
