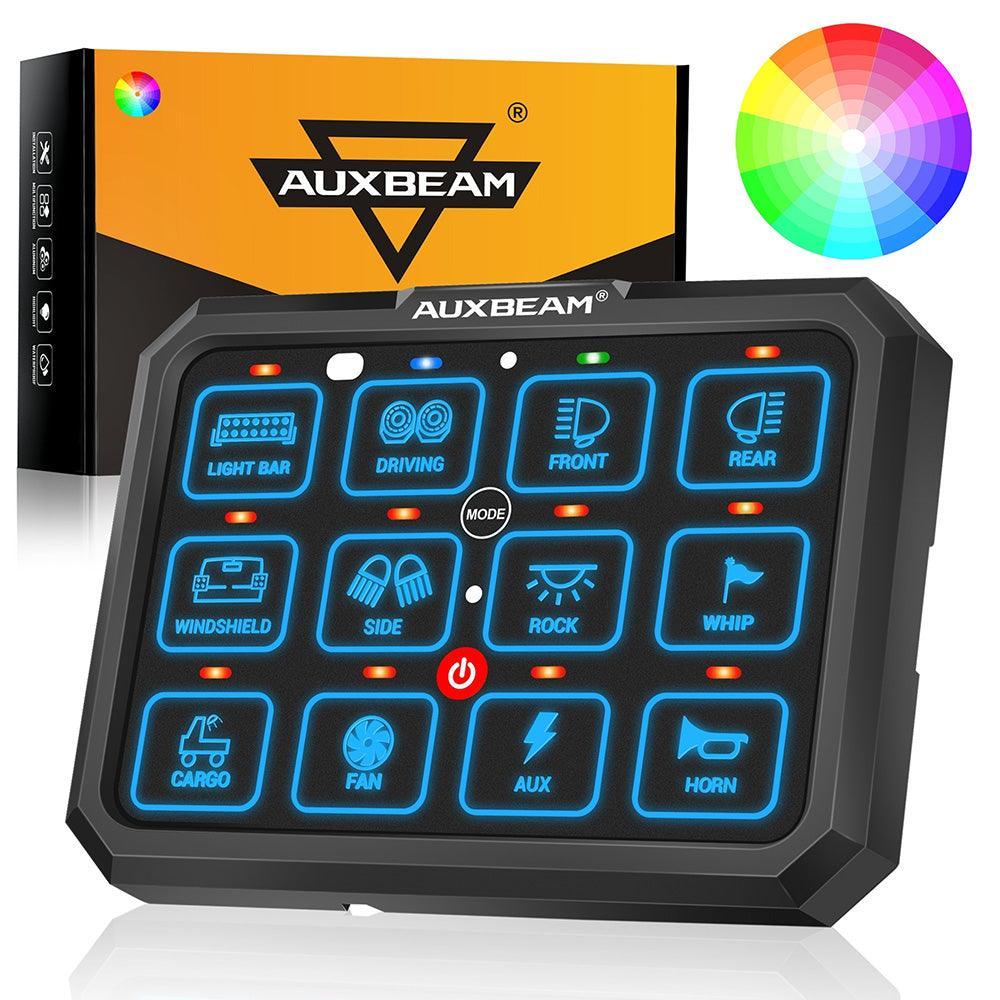

Auxbeam RGB Series 12 Gang (RB120) RGB Switch Panel

The Auxbeam RGB Series 12 Gang (RB120) RGB Switch Panel is a genuine Auxbeam product (Switch Panels).

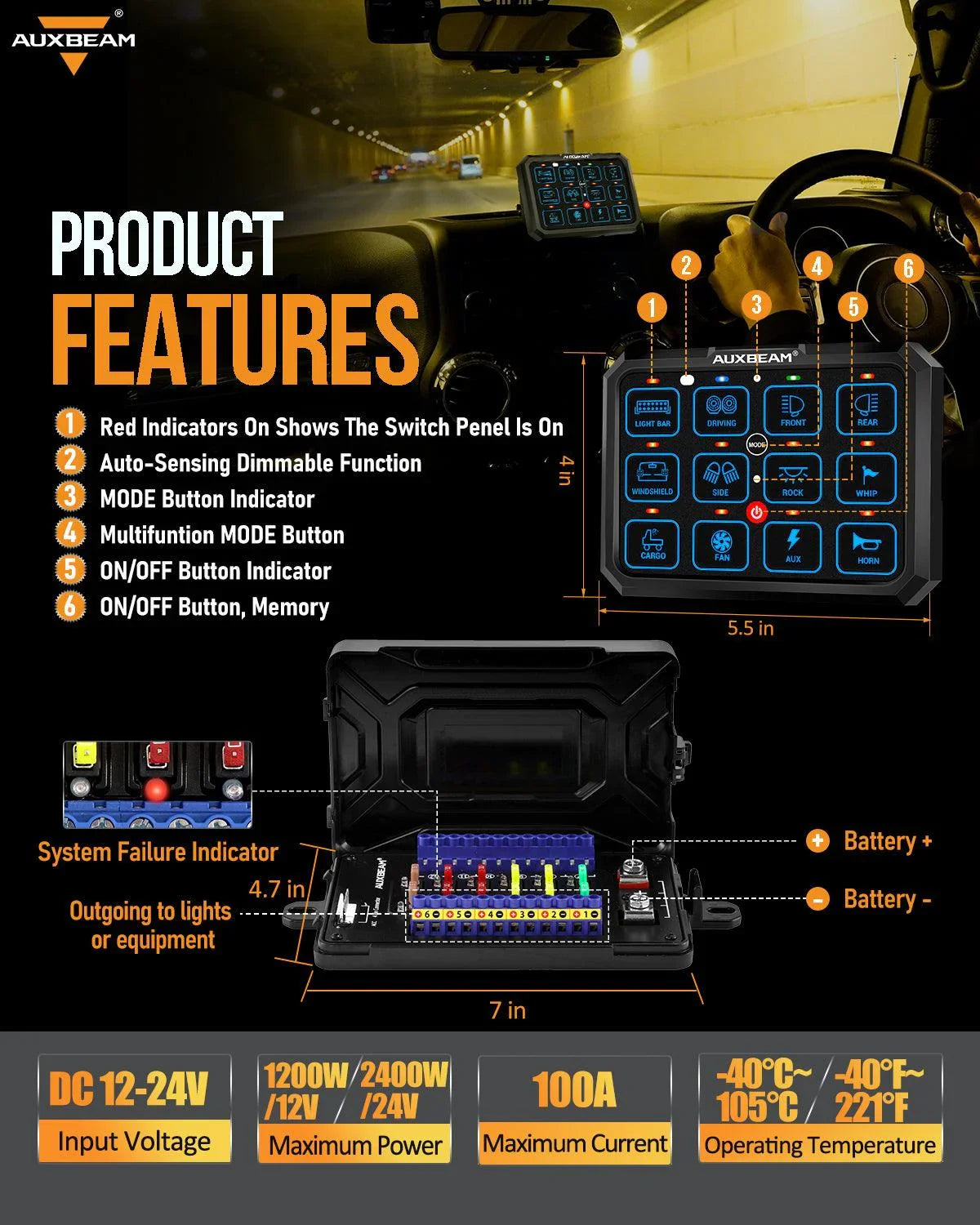

Key Features

• ★Upgraded Functions: ✔ RGB backlight - Unlimited color options match dash lighting and vehicle
• ★Upgraded Functions: ✔ 3 mode setting - Toggle/ Momentary/ Pulsed
• ★Upgraded Functions: ✔Manual backlit off - Turn off the backlight when it's daytime or when it's not necessary
• ★Upgraded Functions: ✔ DIY switch panel - Use the provided 60pcs switch labels to indicate what’s connected to that switch.
• ★Upgraded Functions: ✔ Waterproof cover - Protect the switch panel from rain & snow weather or water
• ▶Rb120 Rgb Switch Panel: 3 Modes setting. Each switch has 3 kinds of light status, different indicator status represents different working modes.
• ▶Rb120 Rgb Switch Panel: ● RED - Toggle, Constant light mode (Great for things like fog lights or driving.
• ▶Rb120 Rgb Switch Panel: ● BLUE - Momentary, Press & hold the button to turn on, then release the button to turn off, just like pressing the horn button.
• ▶Rb120 Rgb Switch Panel: ● GREEN - Pulsed, Flash mode. Press the switch once and the device will flash on/flash off, continuing until the switch is pressed again.
• ▶Rb120 Rgb Switch Panel: RGB backlight color. Adjust backlight color and brightness to match your vehicle.
• ▶Rb120 Rgb Switch Panel: Backlight brightness automatic dimmable. Automatic adjustment according to the brightness variation of the environment.
• ▶Rb120 Rgb Switch Panel: Customize your own switch panel with 120 universal stickers. Use the provided switch labels to indicate what’s connected to that switch.
• ▶Rb120 Rgb Switch Panel: Universal fitment. Widely use for Truck, Boat, Car, Bus, Off-road, Powersports, Marine, ATV, UTV, SUV, Side by Side, SxS, Heavy-duty machines, etc.
• ▶Rb120 Rgb Switch Panel: Waterproof IP65, high sensitivity, stability and strong anti-interference ability.

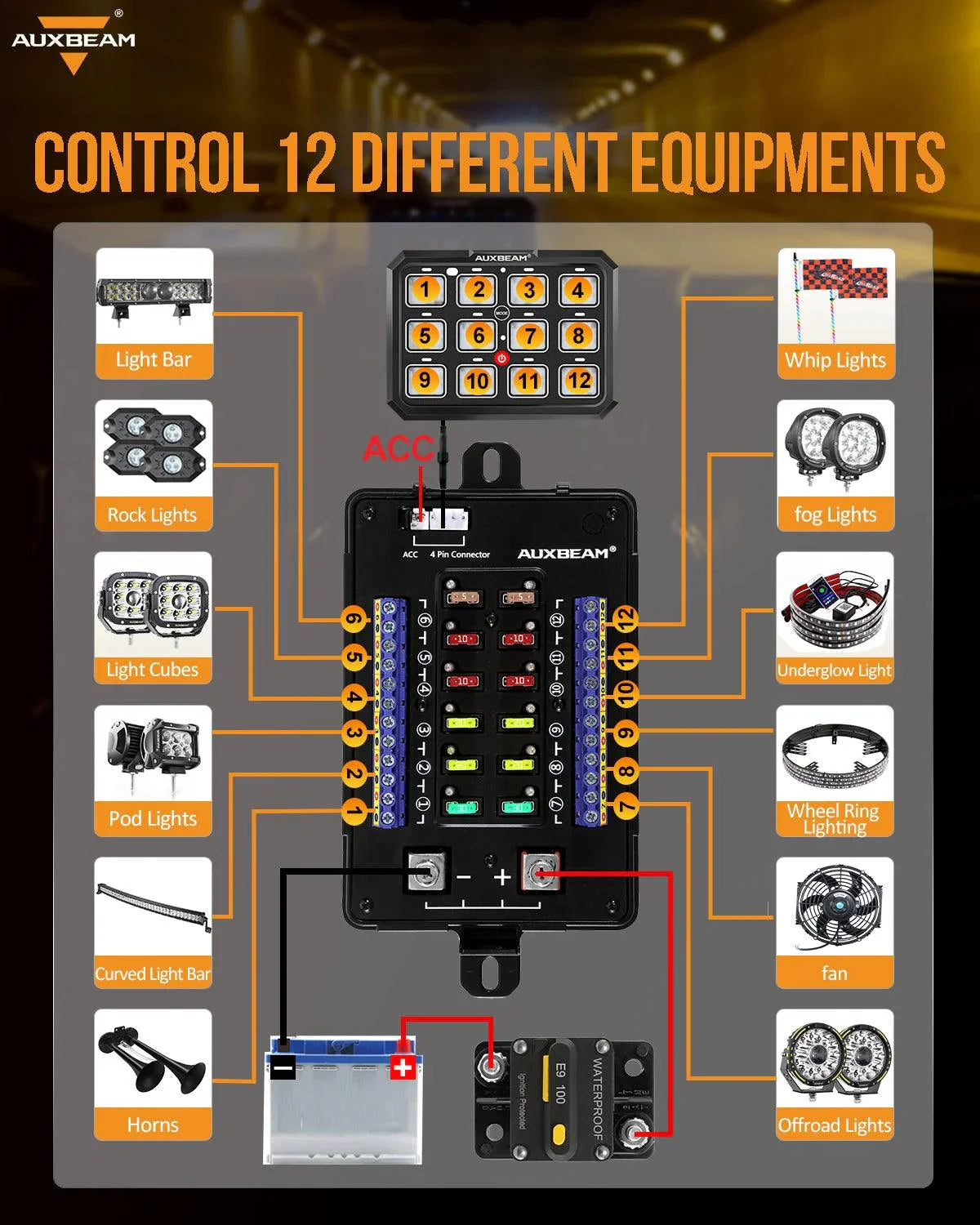

• ▶Rb120 Rgb Switch Panel: Easy Installation. No complicated wiring, no need to cut a big hole in your vehicle. Plug & play wiring harness can connect the LED lights or accessories easily.
• ▶Rb120 Rgb Switch Panel: With 2 types of mounting brackets, you can mount the panel in the best location for your vehicle, such as the dash panel, center console, overhead sunglasses holder, etc.
• ▶Rb120 Rgb Switch Panel: ▶3.94FT Extension Cable
• ▶Rb120 Rgb Switch Panel: There is a 4-pin aviation video cable, a cable for transmitting video and power.
• ▶Rb120 Rgb Switch Panel: It is widely used in truck / Trailer/Bus / Motorhome / long-distance Parking Aid, and connected with vehicle monitoring CCTV system.
• ▶Rb120 Rgb Switch Panel: Power input DC 12V - DC 24V.
• ▶Rb120 Rgb Switch Panel: Specially thick hard wire 100% provides super protection against EMI interference and RF interference such as automotive circuit interference.
• ▶20Ft Extension Cable: Auxbeam Extension Cable. This 20-feet, 4-pin wiring harness extension features a Play and Plug design, allowing for effortless installation of extension wires. With ample length, it provides sufficient reach to extend your wiring harness to the desired location for installation of the controller box
• ▶20Ft Extension Cable: Premium Made. Auxbeam switch panel extension boasts an especially thick hard wire, which not only enhances its strength and longevity, but also provides superior protection against EMI and RF interference, including automotive circuit interference
• ▶20Ft Extension Cable: Wide Application. The Auxbeam cable extension has a broad range of applications and can be utilized to extend control over any vehicle electrical appliance for your modification needs. This includes, but is not limited to UTVs, trucks, trailers, buses, motorhomes, and long-distance parking aid sectors
• ▶20Ft Extension Cable: No Splicing. This extender eliminates the need for splicing of new wires, as it allows for easy extension of existing wires. It is compatible with power input ranging from DC 12V to DC 24V, and features a professional CCTV/monitor 4-pin connector that can be used to connect a rearview camera, DVD player, TV box, or other similar devices
• ▶7Ft Electric Wire: 10㎡/7AWG red and black large wire with 6M and 8M tinned copper wire lugs.
• ▶7Ft Electric Wire: Copper cable lugs are made of solid copper with tin plated caps for corrosion protection.
• ▶7Ft Electric Wire: The package comes with red and black cables with each cable end sealed with heat shrink tubing for heat insulation.

Specifications

• Voltage Input: DC 12-24V
• Max Current: 120A
• Rated Voltage: 12V 20A / 24V 10A
• Max Power: 1200W/12V, 2400W/24V
• Waterproof Rating: IP65
• Operating Temperature: -40°C ~105℃/-40℉~221℉
• Compatible products: professional CCTV / monitor 4-pin connector monitor, rearview camera, DVD player TV box.

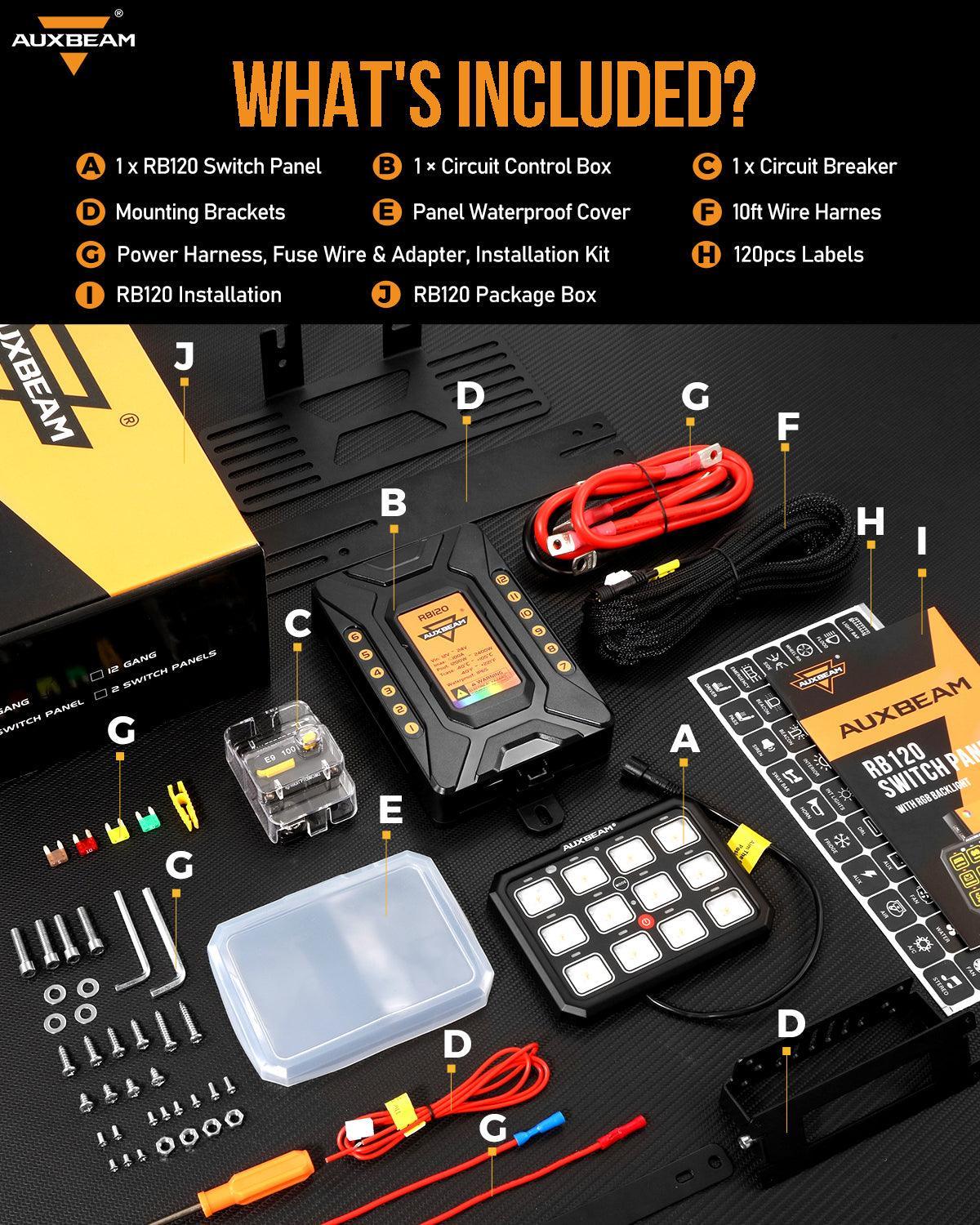

Package Includes

• 1 x Switch Panel (all necessary hardware and wiring harness is included)
• 1 x Installation Instructions

Vehicle Fitment

• Universal (per manufacturer)
