Auxbeam V-MAX Series 5 Inch 138W Spot Beam Side Shooter LED Rectangular Pod

The Auxbeam V-MAX Series 5 Inch 138W Spot Beam Side Shooter LED Rectangular Pod is a genuine Auxbeam product (LED Driving Light).

Key Features

• Side Shooter Design: Designed with dual side lights to work together with front spot light. Light coverage to clear darkness and potential hazard, increasing your driving safety.
• Trusted Brightness: Employ top-notch led chips, total 84 watts per light, with lighting performance 8100LM/PC. Features a trusted brighter long-lasting light, and a clearer, wider, and further visual area. Lifespan extends over 50,000H.

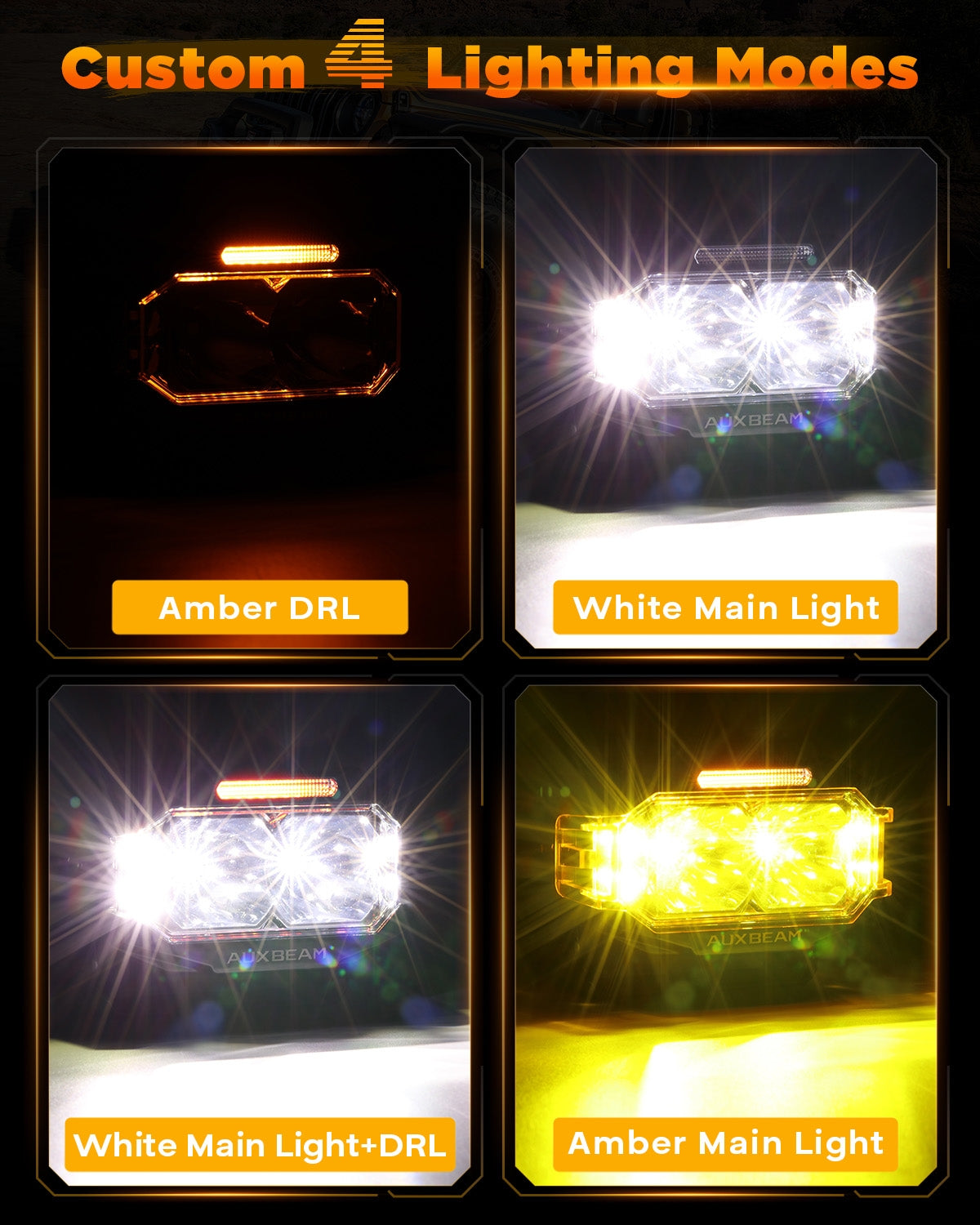

• 3 Light Modes: Side shooter light and front spot light together are main lighting mode to provide a clearer, wider and further visibility for your night time driving. While amber DRL is a daytime lighting mode to add extra safety by capturing other drivers' notices of your presence on the road. Both modes can be used simultaneously.Combining three modes, it’s the perfect light to ensure your safety throughout the whole day.

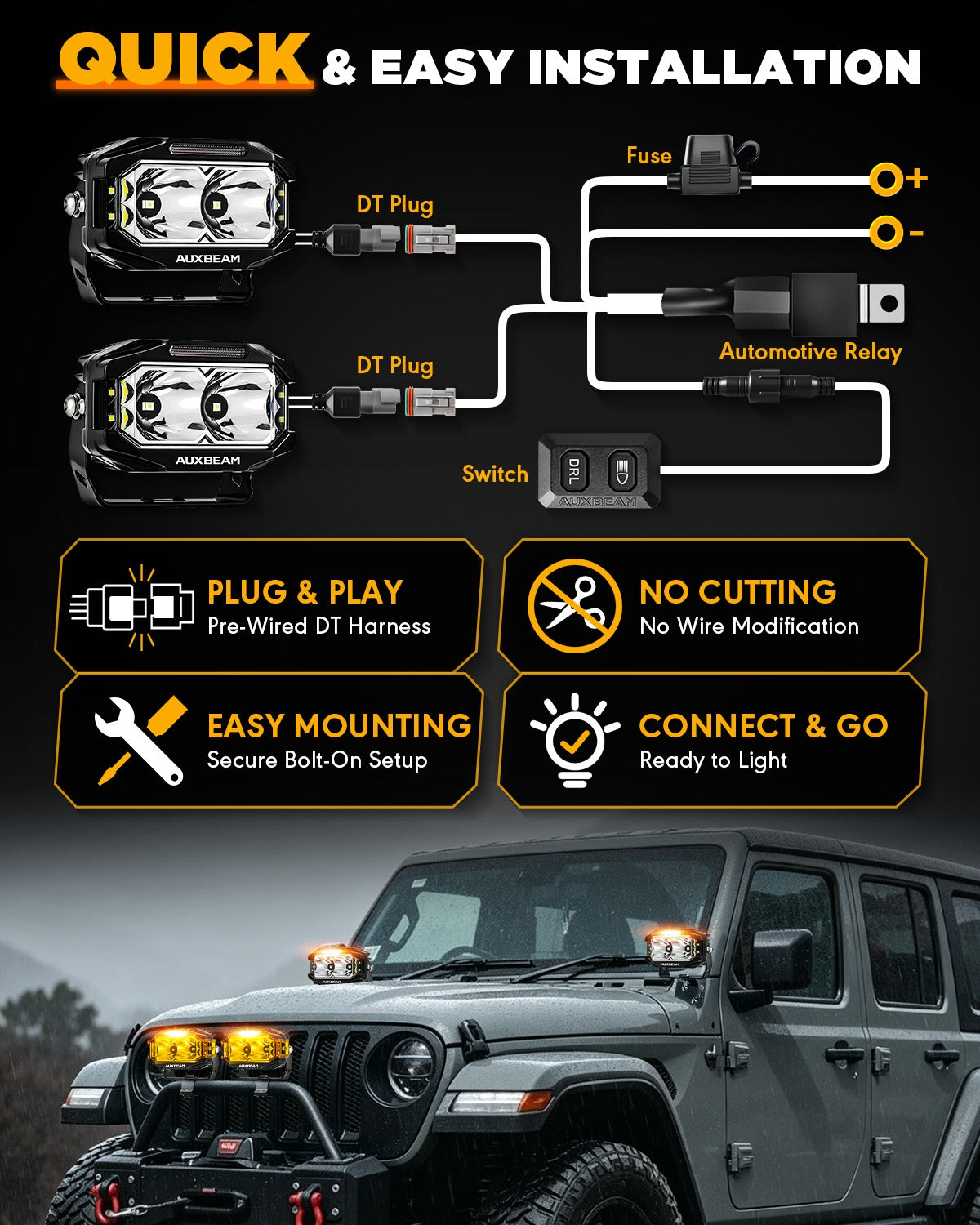

• Easy Installation: Our LED lights come with a plug-and-play wiring harness kit.Say goodbye to the tedious installation process and hello to hassle-free lighting.
• Wide Application: Side shooter LED Lights fits in most vehicles with 10-24V DC power,Such as Trucks Jeep Boat Trailer ATV Off road vehicles, 4x4, Toyota, SUV, Mining, Boating, Farming and Heavy Duty, motorcycle etc.
• Recommend Fit For Our Pod Light Sku: 6-Pod Lights (A maximum of six pod lights can be installed):
• Recommend Fit For Our Pod Light Sku: 4-Pod Lights (A maximum of four pod lights can be installed):
• Recommend Fit For Our Pod Light Sku: 8-Pod Lights (A maximum of eight pod lights can be installed):
• Recommend Fit For Our Pod Light Sku: 6-Pod Lights (A maximum of six pod lights can be installed):
• Compatible: The wiring harness of the LED Pod Light is suitable for three-wire Main Light+DRL mode, and also includes the 6 in 1 3PIN DT Plug 40A fuse and relay. Built-in blade fuses to prevent overcurrent and short circuit to ensure the safety of the vehicle electrical system.
• Load Power: The wiring harness is included in a 3-meter 10AWG (5mm²) main wire&18AWG (0.75 mm²) DRL wire and a 3 PIN DT-adapter plug with a total length of 1.5 meters, it can effectively overload the MAX 40A current, that is, the load power is 480W, DRL power Max 6A (2W)in the 12V.
• Plug and Play: The ultra-high quality features of the LED wiring harness kit make it a must-have tool for connecting any lights to your vehicle. The 6-Pod LED harness is easy to install, comes with 3 wires DT Plug and can be used for roof or bumper in your vehicle

Specifications

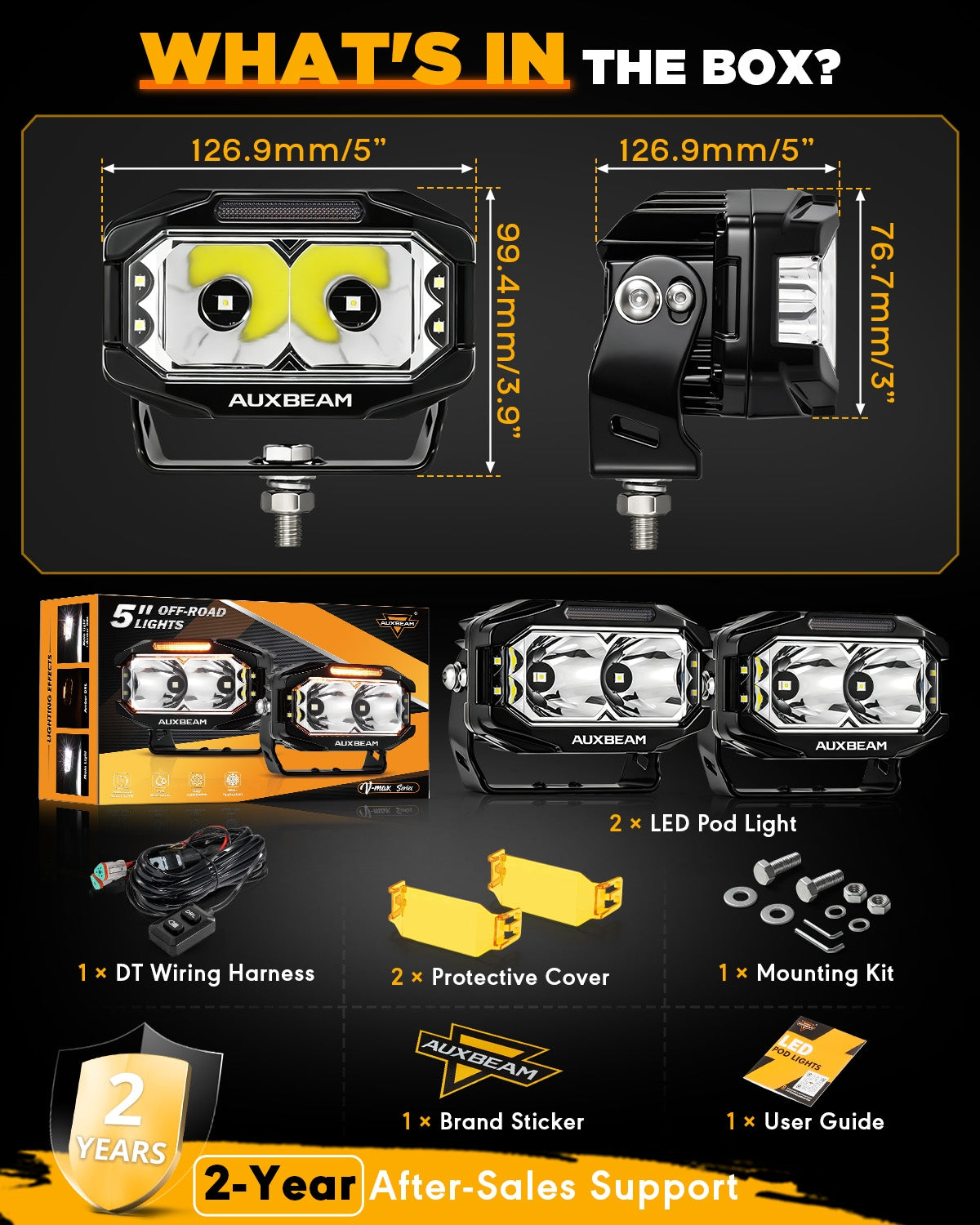

• Shape Size: 5 Inch

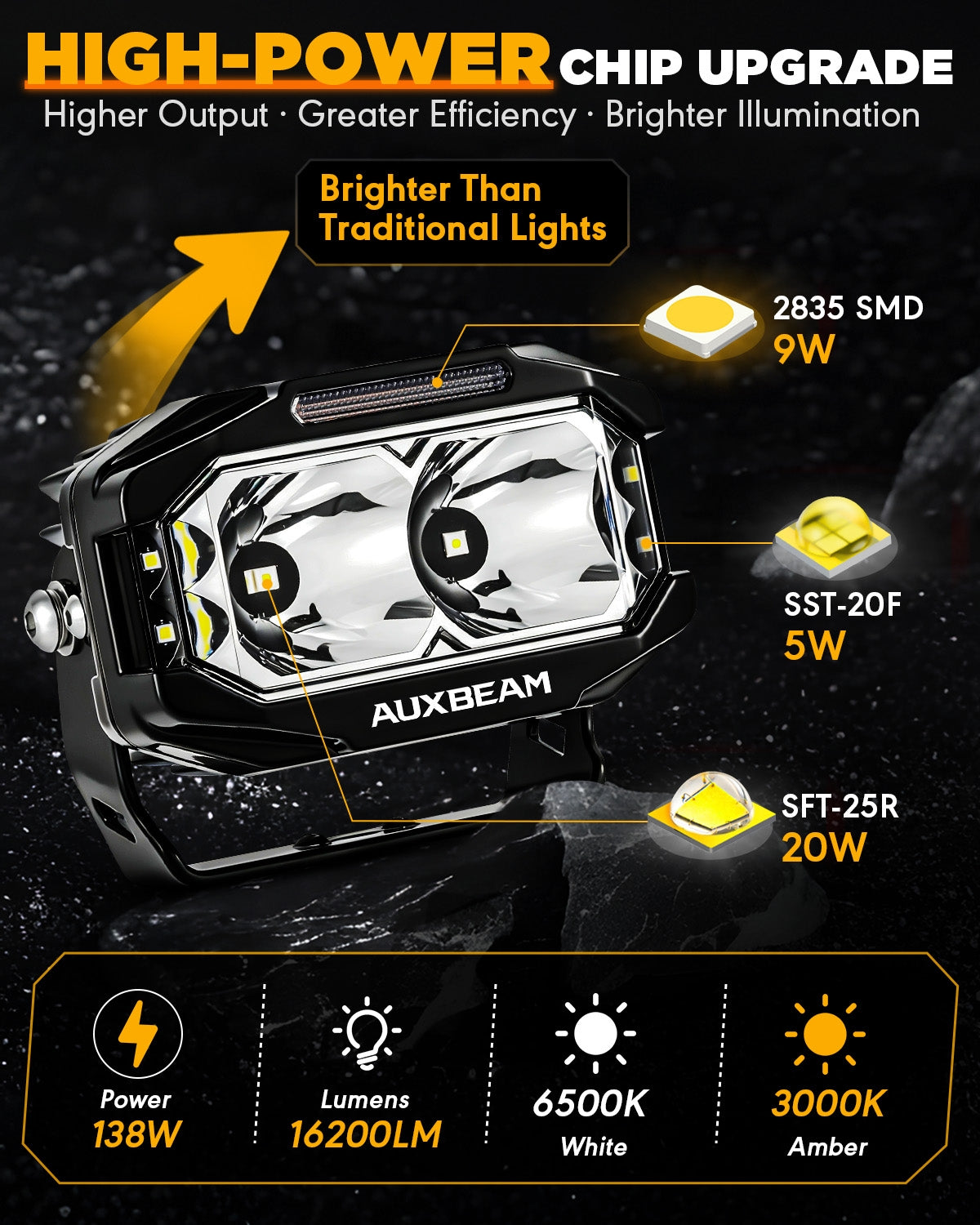

• Lamp Beads Model(Each): SFT-25R 20W/PCS*2++SST-20F 5W/PCS*4+2835 SMD 9W
• Power/Set: 69W * 2(Spotlights 120W+Amber DRL 18W)=138W
• Total Lumens: 16200LM(14400LM+Amber DRL 1800LM)
• Beam Pattern: Spot Light+Double-Side Shooter Light
• Color Temperature: 6900K White/3000K Amber DRL

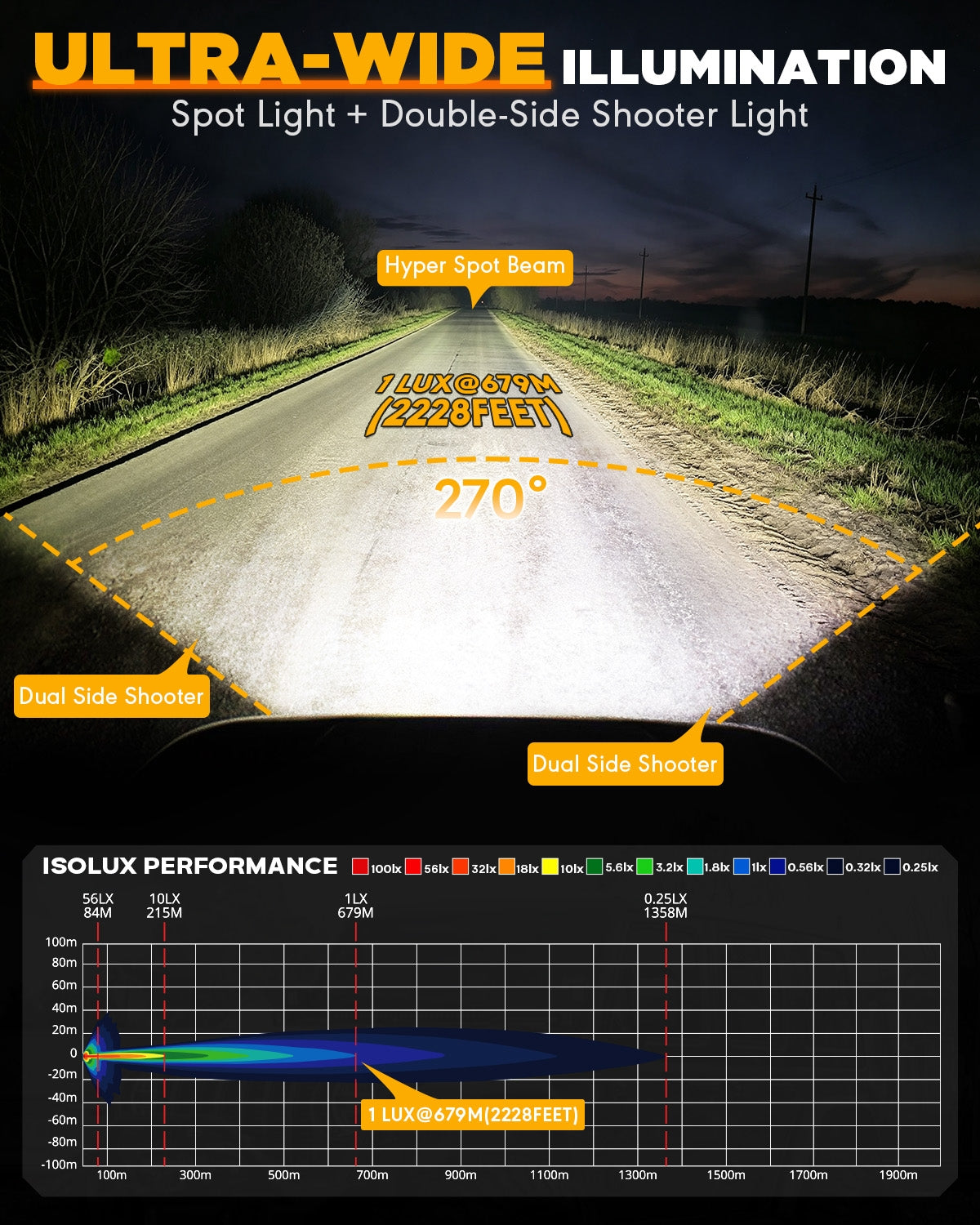

• Light Distance: 1 LUX@679M
• Light Color: White+Amber DRL
• With EMC/EMI: Yes
• Housing Material: Aluminum Alloy
• Lens Material: PC
• Life Time: 50000+ hours
• Housing Color: Black

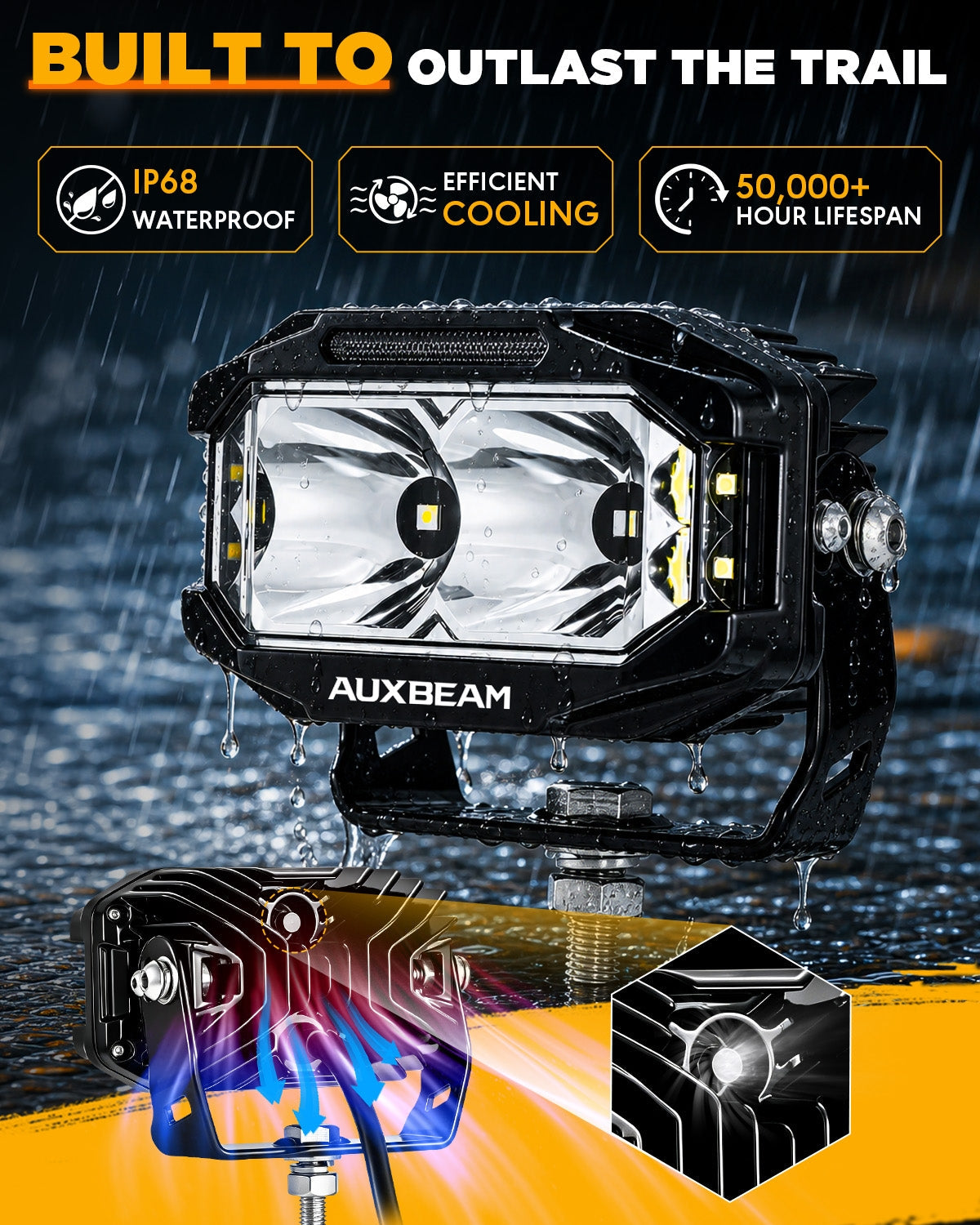

• Waterproof Rate: IP68
• Working Voltage: 10V-30V(Wiring harness Relay is 12V only, can be replaced with 24V)
• XP-ULTRA Series: ZD000753
• V-MAX Series: ZD000851/ZD000852/ZD000849/ZD000850/ZD000929
• V-ULTRA Series: ZD000820/ZD000821
• Other Product: ZD000752
• V-MAX Series: ZD000869/ZD000870
• Other Product: ZD000617/ZD000484/ZD000696/ZD000697
• XP-ULTRA Series: ZD000753
• V-MAX Series: ZD000851/ZD000852/ZD000849/ZD000850//ZD000929
• V-ULTRA Series: ZD000820/ZD000821
• Other Product: ZD000752
• V-MAX Series: ZD000869/ZD000870
• Other Product: ZD000617/ZD000484/ZD000696/ZD000697
• Switch Wire Length: 3M
• Install Pod Distance: 15cm
• DT-plug Adapter Length: 10cm
• DT-plug Connector: 3 PIN
• Wire Size: 10AWG National Standard（DRL 18AWG）
• Wire Material: 5 mm² Copper Wire（DRL 0.75mm²）
• Working Voltage: 12V（Replaceable 24V relay）
• Delay: Double 12V delay

Vehicle Fitment

• Fit Model: Universal(M10 screw mounting)
