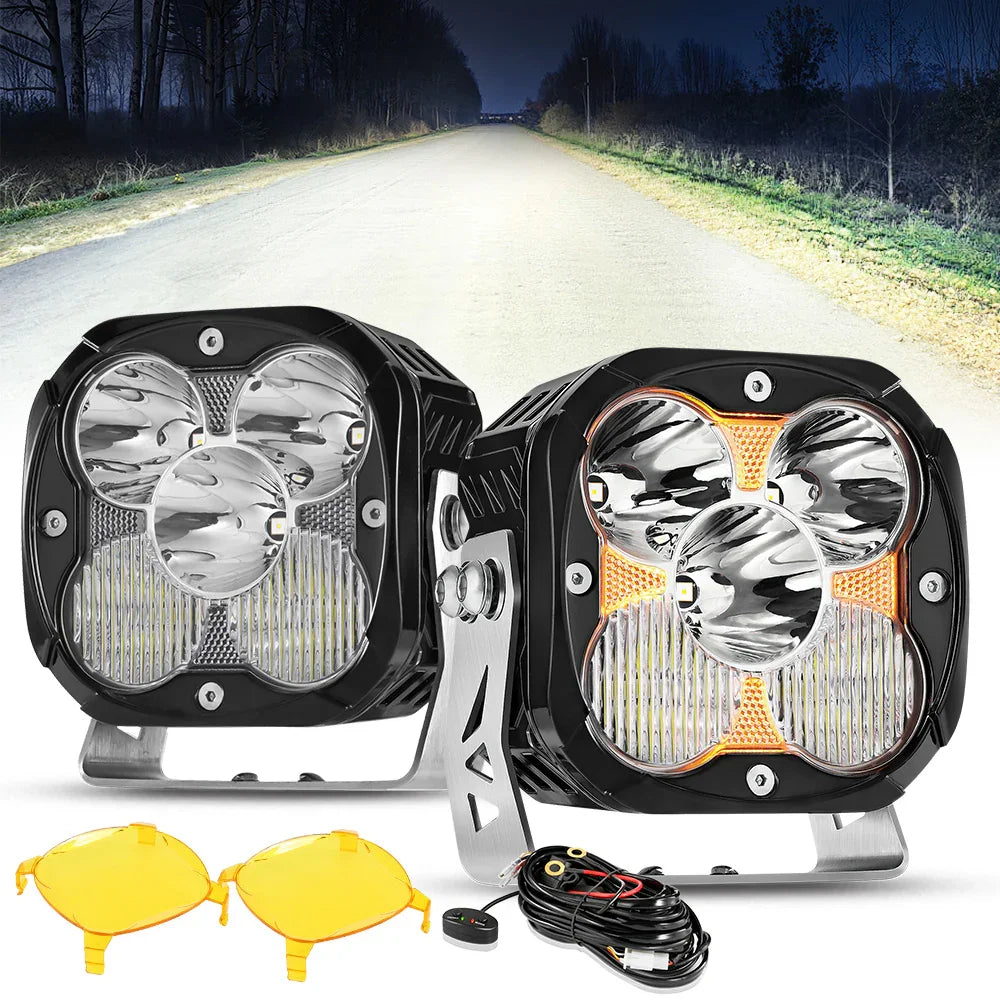

Auxbeam XP-ULTRA Series 4.5 Inch Combo Beam LED Pod Lights Off Road Lights

The Auxbeam XP-ULTRA Series 4.5 Inch Combo Beam LED Pod Lights Off Road Lights is a genuine Auxbeam product (LED Driving Light).

Key Features

• TRUSTED DRIVING VISION: With a powerful 128W output, they deliver 15200 lumens and a lighting distance of 1lux@696M. They provide intense, natural light with a 6500K white beam and a 3000K yellow beam, ensuring a farther and wider illumination range for safe night driving.
• MULTI-MODEL INNOVATIVE DESIGN: In addition to white lights for daily driving, we've included amber DRL. With an Amber DRL that ensures visibility without glare during nighttime driving. We also offer yellow cover for a customizable, high-penetration color temperature, ideal for low-visibility conditions.
• HIGH QUALITY DURABILITY: We meticulously select materials, using hardened PC lenses and aluminum alloy housings that offer anti-scratch and anti-corrosion properties, along with efficient heat dissipation. Additionally, our strips undergo rigorous testing before leaving the factory, are triple waterproof, meet international IP68 certification standards, and boast a service life of over 50,000 hours.
• Recommend Fit For Our Pod Light Sku: 6-Pod Lights (A maximum of six pod lights can be installed):
• Recommend Fit For Our Pod Light Sku: 4-Pod Lights (A maximum of four pod lights can be installed):
• Recommend Fit For Our Pod Light Sku: 8-Pod Lights (A maximum of eight pod lights can be installed):
• Recommend Fit For Our Pod Light Sku: 6-Pod Lights (A maximum of six pod lights can be installed):
• Compatible: The wiring harness of the LED Pod Light is suitable for three-wire Main Light+DRL mode, and also includes the 6 in 1 3PIN DT Plug 40A fuse and relay. Built-in blade fuses to prevent overcurrent and short circuit to ensure the safety of the vehicle electrical system.
• Load Power: The wiring harness is included in a 3-meter 10AWG (5mm²) main wire&18AWG (0.75 mm²) DRL wire and a 3 PIN DT-adapter plug with a total length of 1.5 meters, it can effectively overload the MAX 40A current, that is, the load power is 480W, DRL power Max 6A (2W)in the 12V.
• Plug and Play: The ultra-high quality features of the LED wiring harness kit make it a must-have tool for connecting any lights to your vehicle. The 6-Pod LED harness is easy to install, comes with 3 wires DT Plug and can be used for roof or bumper in your vehicle.

Specifications

• EASY TO INSTALLATION: Enjoy a hassle-free, plug-and-play installation. Say goodbye to tedious installation processes!
• Size: 4.5 Inch
• Power/Set: [64W*2(Spotlights 60W+Amber DRL 4W)]=128W
• Total Lumens: 15200LM（14400LM+Amber DRL 800LM）
• Housing Material: Aluminum Alloy
• Lens Material: PC
• Lamp Beads Model(Each): Luminus SST40*5(12W/pcs)+2835 SMD 4W
• Lighting Distance:1 LUX@696M
• Beam Pattern: Hyper Combo Beam（20°+ 120°）
• Color Temperature: 6500K/3000K Main Light+3000K Amber DRL
• Light Cover：Amber
• With EMC/EMI：Yes
• Life Time: 50000+ hours
• Waterproof Rate: IP68
• Working Voltage: 12V-24V(Wiring harness Relay is 12V Only，can be replaced with 24V)
• XP-ULTRA Series: ZD000753
• V-MAX Series: ZD000851/ZD000852/ZD000849/ZD000850
• V-ULTRA Series: ZD000820/ZD000821
• Other Product: ZD000752
• V-MAX Series: ZD000869/ZD000870
• Other Product: ZD000617/ZD000484/ZD000696/ZD000697
• XP-ULTRA Series: ZD000753
• V-MAX Series: ZD000851/ZD000852/ZD000849/ZD000850
• V-ULTRA Series: ZD000820/ZD000821
• Other Product: ZD000752
• V-MAX Series: ZD000869/ZD000870
• Other Product: ZD000617/ZD000484/ZD000696/ZD000697
• Switch Wire Length: 3M
• Install Pod Distance: 15cm
• DT-plug Adapter Length: 10cm
• DT-plug Connector: 3 PIN
• Wire Size: 10AWG National Standard（DRL 18AWG）
• Wire Material: 5 mm² Copper Wire（DRL 0.75mm²）
• Working Voltage: 12V（Replaceable 24V relay）
• Delay: Double 12V delay

Package Includes

• 2 X LED Pod Lights（With DT Plug）
• 2 X Light Covers（Amber）
• 1 X Wiring Harness（With DT Plug）
• 1 X Srew Accessories

Vehicle Fitment

• Fit Model: Universal

Shipping

• Ships from a U.S. warehouse; if U.S. stock runs short it may ship from the manufacturer's overseas warehouse.
• Processing time: up to 48 hours before shipment.
• U.S. transit time: about 3-5 business days after shipment. Overnight shipping is not available.
• Tracking is provided once the order ships.
• Shipping weight: 8.82 lb (4000 g).
